How to fit Renthal® Fatbar®36 Handlebars

Fitting a set of Renthal® Fatbar®36 is a relatively simple task, that requires the removal of the motorcycles bar mounts. In addition all handlebar mounted components need to be removed prior to fitting Fatbar®36.

Before Fitting : Review Fatbar®36 Important Safety Information

Time Required : 1hr

Tools Required : Torque Wrench, 6mm Hex Key, Motorcycle Manual

Fatbar®36 Fitting Video

  • Step 1: Mounting 36mm Bar Mounts

    Mount and torque each of the bottom half of the bar mounts as per motorcycle owner’s manual.

  • Step 2: Fit Fatbar®36 to bottom bar mounts

    Place Ø36 handlebar between bar mounts.

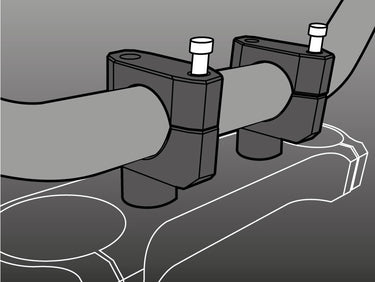

  • Step 3: Place top mounts over handlebar

    Place top caps over bar and lightly tighten the zero gap screw in each clamp.

  • Step 4: Adjust the Handlebar Position

    Adjust the handlebar to your desired riding position.

  • Step 5: Torque ZeroGap™ Fasteners

    Torque zero gap screw in each clamp to 18Nm(max).

  • Step 6: Torque Non-ZeroGap™ Fasteners

    Torque the opposite screws on the bar mounts to 18Nm(max) and fit bar pad.
