How to fit Renthal® Fatbar® Handlebars

Fitting a set of Renthal® Fatbar® Handlebars is a relatively simple task, that in most cases does not require a change in bar mounts. Before starting this installation ensure the throttle, brake, clutch and any switches are removed. Be sure to check out the Fatbar® Fitting video below for a guided step by step of how to fit Renthal® Fatbar® Handlebars

Before Fitting : Review Fatbar Important Safety Information

Time Required : 1hr

Tools Required : Torque Wrench, Hex Keys, Torx Keys, Motorcycle Manual



  • Step 1: Remove controls and existing handlebar off motorcycle.

    Following the manufacturers suggestion, remove the existing handlebar and controls off the motorcycle.

  • Step 2: Fit Throttle, Brake, Clutch and Switches to the Fatbar®.

    In reverse order you took the parts off, re-fit them to the Fatbar®. At this stage the handlebar control parts do not need to be tightened fully.

  • Step 3: Fit Fatbar® into Bar Mount and position to rider setup.

    Place Fatbar® into the bar mounts and lightly tighten the fasteners. Position the Fatbar® to the rider's desired position and hold.

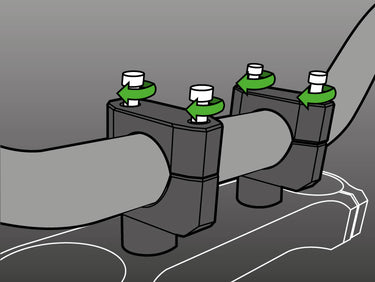

  • Step 4: Tighten the bar mount fasteners (Do Not Exceed 18Nm).

    Whilst holding the Fatbar® in position, apply the bar mount manufacturers torque to the mounts, remembering to not exceed 18Nm.

  • Step 5: Position and tighten the control to riders preference.

    Move the controls and switches along the handlebar and roll them into the riders preferred position, before tightening to the correct torque.

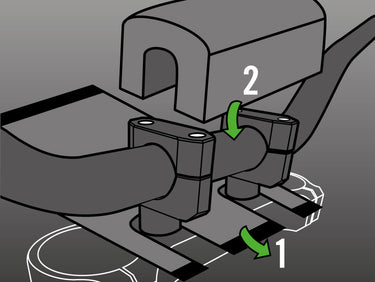

  • Step 6: Fit the Renthal® Bar Pad.

    With the bars set up, simply feed the cover between the mounting section and the brace, slide the foam along the brace and cinch up the velcro. Ensure the text is facing outwards to complete the Pro look.
