  • 28.6mm Bar Mounts 5mm O/S Hon 2k-22/Yam YZF 2014-20/Kaw 2014-22

28.6mm Bar Mounts 5mm O/S Hon 2k-22/Yam YZF 2014-20/Kaw 2014-22

  • $85.95

  • Ex Tax: $85.95
  • Product Code: CL001
  • Availability: Out of Stock

Use Buy at Local Store button to find nearest availability or Contact your local Renthal Stockist

Product Description

Honda CRF-R        2000 - 20

Yamaha YZ-F        2014 - 20

Kawasaki KX        2017 - 20

Check your bikes fitments at Fit My Bike

Renthal’s 1 1/8” (28.6mm) handlebar mounts are designed to allow the mounting of oversized 1 1/8” handlebars, such as the Twinwall or Fatbar, on certain model motorcycles which are equipped with 7/8” handlebars as standard.  These are CNC machined from 6082-T6 billet aluminum and black anodized with laser etched Renthal logo.

The mounting studs are a special CNC machined hardened nickel chromoly steel with a machined relief to allow for the bending of the stud in the event of a hard crash.  Our 1 1/8” mounts are meant to be a direct OEM replacement for the stock 7/8” mounts and will replicate the OEM bar position and height.

Sold as a pair.


  • The clamps are CNC precision machined from 6082 T6 solid billet, high strength aluminium alloy.
  • Precision CNC machining ensures a perfect fit between the handlebar and clamp for maximum clamping strength.
  • The bolts are CNC machined from nickel chromium molybdenum 817M40 steel and the hardened and tempered to grade W strength.
  • A unique bolt head design with part hemispherical seating blended into the shank minimises the chance of bolt failure.
  • Renthal bar mounts are designed to replicate the bar postion of the OE bar mounts.
  • Black anodised finish.
  • Please note Renthal bar mounts are designed to utilize the OE rubber cones.


bar dimensions

Write a review

Note: HTML is not translated!
    Bad           Good
Bar Mount Dimensions
Dim A 28
Dim B 12
Dim C 32
Dim D 5
Dim E 47
Dim F 34

Related Products

Replacement Bolt Kit M12 X 77mm (For CL001/002&CL051/052)

Replacement Bolt Kit M12 X 77mm (For CL001/002&CL051/052)

814-50 STREET FIGHTER

814-50 STREET FIGHTER

819-50 STREET NAKED / YAM MT-09

819-50 STREET NAKED / YAM MT-09

828-50 STREET LOW

828-50 STREET LOW

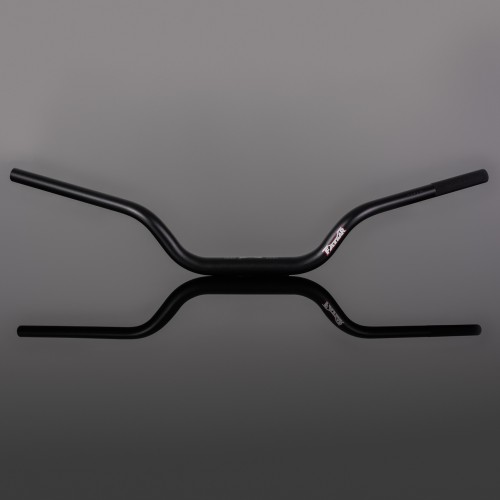

845-50 STREET MEDIUM (Touring)

845-50 STREET MEDIUM (Touring)

831-50 STREET YAM Tenere 700 XTZ

831-50 STREET YAM Tenere 700 XTZ

Tags: Yamaha, 1SL-23442-00-00, 1SS-23442-00-00, Honda, 53132-KZ4-J20, 53132-MKE-A70

Accordion
The handlebar clamping surfaces are accurately machined. This ensures a perfect fit between the handlebar and clamp which reduces possible movement. Available in different offsets and anodised to prevent corrosion.
twinwall
To minimise the chance of bolt failure, special attention has been paid to the design. The unique bolt head is designed with a part hemispherical seating blended into the shank. The bolt is plated and de-embrittled to resist corrosion. A stainless steel spring dowel pin prevents rotation when tightening.
twinwall
Both the clamps and the bolts are carefully CNC machined at the Renthal Factory.

Taking a billet of material our CNC machines using various tools machine away material leaving the final product ready for finishing.
twinwall
The clamps are CNC machined using a high strength 6082 T6 Aluminium alloy. The bolts are CNC machined from nickel chromium molybdenum 817M40 steel that is both hardened and tempered to grade 'W'. Corresponding to an ultimate tensile strength of 1075-1225 N/mm or 70-80 Ton/in.
